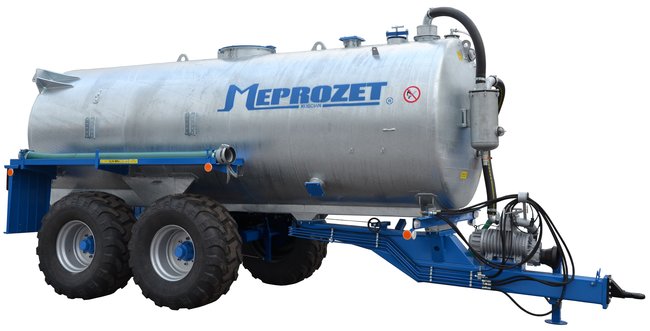

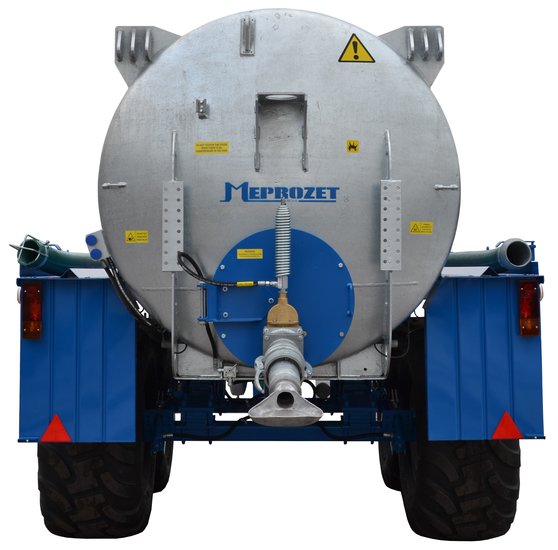

PN - 1/14

  • length - 7 550 mm
  • width - 2 550 mm
  • height - 3 100 mm
  • unladen weight - 4 400 kg
  • gross weight - 17 000 kg
  • tank capacity - 14 000 l
  • number of wheels - 4
  • wheel track - 2 000 mm
  • tyres - 20.5 R22.5
  • vertical load - 20 KN
  • tractor horsepower - 140 HP
  • filling time - 6 min
  • spreading spoon spilling width - 14 m
  • compressor type - JUROP PN 84M
  • compressor capacity - 9 000 l / min
Capacity PN-1/14
version
Number of axles Wheel track Wheel setback Tyres Compressor
14 000 litres version A
standard
1 2000 220 / 275 / 8 20,5 R22,5
retread
JUROP
PN 84/M
version B 1 2000 220 / 275 / 8 600 / 55 x 22,5

JUROP
PN 84/M

version C 2000 220 / 275 / 8 560 / 60 x 22,5

JUROP
PN 84/M

A slurry tanker has got the following components in its standard equipment:

  • 5" suction hose 3 m long, with a suction strainer
  • 5" suction hose 3 m long - extender
  • compressor with a safety valve
  • spreading spoon
  • damper - oil recuperator
  • mudguards
  • float valve in the upper part of the tank
  • overflow tank
  • manometer
  • adjustable supporting foot
  • replaceable tow eye
  • single-line braking system
  • 12 V electrical system
  • hydraulic system for opening the discharge valve
  • hydraulic system for injectors or dribble bars supply

A slurry tanker, beside its standard version, can also be manufactured in a special version and can have additional components, extending its functionality:

  • tyres 560/60x22.5; 600/55x22.5; 700/50x22.5 or 700/50x26.5
  • tank with special paint coating
  • brass gate valves on the side of the tank
  • Ø 420 mm upper hatch, manual or hydraulic
  • ladder
  • glass-tube level indicator
  • discharge pipe with a 2" valve
  • compressor PN 106M or other
  • PTO shaft
  • sprinkling distributors for backward or sideward
  • double-line braking system
  • swivel tow eye or other
  • tandem with steering wheels
