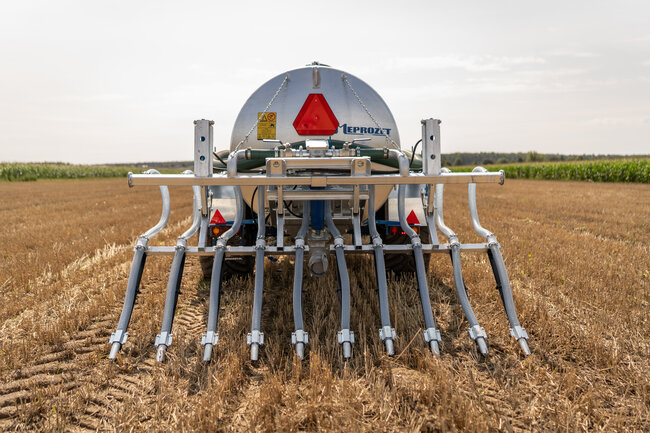

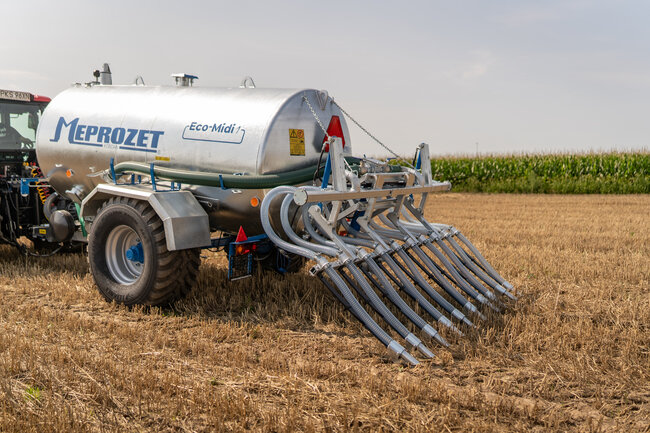

Injector for grass DT-10

Name: MEPROZET Kościan S.A.
Address: Gostyńska 71, Kościan, wielkopolskie, 64-000
Telephone: 655121060

length - 700 mm
width - 3 000 mm
height - 1 800 mm
unladen weight - 320 kg
working width - 3 m
number of hoses - 10 pcs
hoses spacing - 300 mm

Hydraulic lowering of frames with hoses allows slurry to flow under pressure from the slurry tanker through the gate valve and the distribution pipe. Discs with holes mounted on the connections allow you to set the flow rate. Closing the ball valves on the pipe allows emptying of the tank with a spreading spoon. Drain hoses with springs ensure continuous contact of the cutting knife with the ground.

APPLICATION

soil, uniform fertilization of pastures and grasslands
inter-row watering with homogenized slurry
