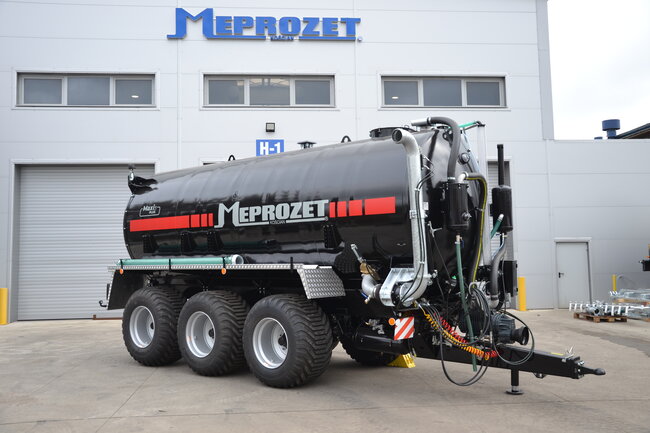

PN - 240 (24 000 L)

• length – 8 550 mm*
• width - 3 130 mm*
• height - 3 740 mm*
• unladen weight – 8 000 kg
• gross weight – 31 950 kg
• number of wheels - 6
• chassis type - Tridem, with first and third steering axle
• load on hitch – 30 KN
• required tractor horsepower -240 HP
• filling time – 9 min
• spreading spoon spilling width - 12m
• vacuum pump capacity (air flow) – 11000 l / min

*refers to slurry tankers on tyres 560/60 R22,5

The data provided above is for informational purposes only. Therefore, they do not constitute a sales offer and cannot be used directly in a tender without prior consultation with the sales department.

Product photos included in the gallery are illustrative and may differ to a greater or lesser extent from those delivered to the customer. In addition, photos may contain additional options that are not included in the standard equipment.

Slurry tanker’s standard equipment:

• Adaptation for injector or dribble bars mounting
• Steel tank, hot galvanized
• Internal strengthening rings
• Steel supporting frame, painted
• Front and rear steering axles
• Sprung drawbar
• Overflow safety device
• Overflow tank
• Manometer
• Safety valve
• Float valve
• Emergency hand-brake
• Damper – oil recuperator
• Spreader with disc
• Permanently closed backdoor
• Ø 600 mm rear hatch
• Ø 600 mm upper hatch
• Plugged lateral outlet
• Plugged 2" discharge pipe
• Galvanized mudguards
• Glass-tube level indicator + 2 sight-glasses
• Mechanically adjustable jack
• Replaceable tow eye Ø 50 mm (other diameter is also possible)
• 6" couplings PERROT type (or 4" fire couplings)
• Quick connection with 6" manual gate valve
• Hydraulic 6" gate valve
• 6" (Ø 125 mm) suction hose with a suction strainer. in two parts 3m each
• Electro-lighting (LED) system
• Double-line pneumatic braking system with air brake valve (or hydraulic braking system)
• Tank adaptation for hydraulic worm stirrer
• Adaptation for half-opened pipe and turbo-filler
• Flashing beacon light
• Searchlight
• Red-white warning plates (4 pc in set) and warning trianlge
• Box with solenoid valves + control panel
• Hydraulic hitch ballasting system

The data provided above is for informational purposes only. Therefore, they do not constitute a sales offer and cannot be used directly in a tender without prior consultation with the sales department.

Slurry tanker’s additional equipment:

• Aluminium side boxes for suction hoses
• Automatic air brake valve for tridem chassis
• Additional 6” manual gate valve
• Dribble bar with dragged hoses type 3
• Folding ladder
• Mud flap
• Hydraulic supporting foot
• Hydraulic control of compressor
• Wheel chocks (2 pc)
• Compressor JUROP PN 140M (1000 rpm)
• Compressor JUROP PN 155M (1000 rpm)
• Compressor LC 420 water-cooled, for continuous operation (instead JUROP PN 84M / PN 106M)
• Compressor LC 580 water-cooled, for continuous operation (zamiast JUROP PN 140M)
• Hydraulic worm stirrer
• Float level indicator
• Dose control system
• Two-sided distributor
• One-sided distributor
• Drainage pipe with 2” valve
• Half-opened suction pipe 6" + hydraulic control of compressor
• Half-opened suction pipe 8" + hydraulic control of compressor
• Toolbox 500x400x350 [mm]
• Manual control of hydraulic devices
• Rubber cone for pumping 6"
• Rubber cone for pumping 8"
• Rubber cone for pumping 10"
• Quick connection for 5” suction hose attachment
• Quick connection for 6” suction hose attachment
• Turbo-filler 6"
• Turbo-filler 8"
• PTO shaft
• 2" hose with fire couplings and drainage knee
• Hydraulic plunged 5” hose mounted on the back
• Hydraulic plunged 6” hose mounted on the back
• 6” suction hose - extender L=3 m
• Ø 420 mm hydraulically opened upper hatch
• Ø 420 mm manually opened upper hatch
• Additional 3” sight glass
• Ball coupling
• Swivel tow eye (other diameter is also possible)
• Hand wash water tank
• Change of suction hose and manual gate valve on side from 5" to 8"
